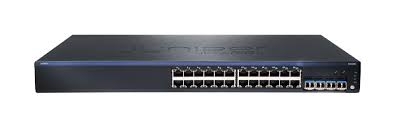

Switch Juniper Layer 3 Gigabit EX2200 - 24x 10/100/1000Mbps / 4x slots mini-GBIC(EX2200-24T-4G)

Form Factor Fixed platform Virtual Chassis configuration consisting of up to four switches Dimensions EX2200: (W x H x D) 17.4 x 1.7 x 10 in (44.1 x 4.4 x 25.4 cm) 1 rack unit EX2200-C: (W x H x D) 10.6 x 1.7 x 9 in (26.9 x 4.4 x 22.8 cm) 1 rack unit Backplane Speed N/A Data Rate EX2200-24P/24T: 56 Gbps EX2200-48P/48T: 104 Gbps EX2200-C-12T/12P-2G: 28 Gbps Throughput EX2200-24P/24T: 42 Mpps (wire speed) EX2200-48P/48T: 77 Mpps (wire speed) EX2200-C-12T/12P-2G: 21 Mpps 10/100/1000BASE-T Port Densities EX2200: 24 / 48 per platform Up to 96 / 192 in Virtual Chassis configuration EX2200-C: 14 per platform Up to 56 in Virtual Chassis configuration 100BASE-FX / 1000BASE-X (SFP) Port Densities EX2200: 4 per switch (fixed ports, SFP required) Up to 16 in Virtual Chassis configuration EX2200-C: 2 per switch (fixed ports, SFP required) Up to eight in Virtual Chassis configuration 10GBASE-X Port Densities N/A 40GBASE QSFP+ Port Densities N/A 100GBASE CFP Port Densities N/A Resiliency EX2200: Integral power supply and fans; external power supply option EX2200-C: Fanless design improves MTBF by eliminating moving parts that can fail Power Options EX2200-24T (non-PoE): Autosensing; 100-120 V / 200-240 V / 200-240 V; AC 50 W EX2200-48T (non-PoE): Autosensing; 100-120 V / 200-240 V / 200-240 V; AC 470 W EX2200-24P (PoE/PoE+): Autosensing; 100-120 V / 200-240 V / 200-240 V; AC 470 W EX2200-48P (PoE/PoE+): Autosensing; 100-120 V / 200-240 V / 200-240 V; AC 496 W EX2200-C-12T-2G (non-PoE): 100-120 V / 200-240 V; AC 30 W EX2200-C-12P-2G (PoE/PoE+): 100-120 V / 200-240 V; AC 180 W Operating System Junos Traffic Monitoring sFlow QoS Queues / Port 8 MAC Addresses 16,000 Jumbo Frames 9,216 Bytes IPv4 Unicast / Multicast Routes 6,500 / 1000 IPv6 Unicast / Multicast Routes N/A Number of VLANs 1,024 ARP Entries 2,000 Warranty EX2200: Enhanced limited lifetime hardware warranty EX2200-C: Enhanced limited lifetime hardware warranty
